Axial compact fans
    high flow rates in small footprints
    Explore flagship models

    High airflow with medium to high pressure increase
    ebm‑papst industrial axial compact fans

    AxiFlow 60

    Powerful & versatile ventilation

    Our product portfolio includes a wide selection of fan sizes, motor technologies, and smart fan functions via digital solutions. With ebm‑papst, you'll find the right axial compact fan for your application.

    When operating freely at zero static pressure, compact axial fans have the lowest power consumption. This compact design allows for space-saving installation. Mounting holes are already provided on the flanges for easy attachment.

    DC compact fans
    EC compact fans
    AC compact fans

    The benefits you get
    with ebm‑papst fans

    Our fans consume minimal energy without sacrificing performance. Keep your cooling running efficiently at a low operational cost.

    renewable energy icon

    Our fans are built to last. We guarantee maximum uptime, minimal maintenance, and reliable performance.

    ebmpapst instructions icon

    Get quiet, consistent airflow for environments where low noise is a big pain point (such as configurations with many fans).

    ebmpapst noise level icon

    We have fan modules that integrate seamlessly into your system. No complex setup, delays, or complicated installation.

    Plug and play

    Our fans are compliant with regulatory standards for safety and quality, such as VDE, UL, CSA, CE, GOST, and ATEX.

    Innovation icon

    Digital services bring measurable added value such as energy savings, predictive maintenance, prolonged service life, better air quality, and more.

    Digitalization icon

    Technical data

    for ebm‑papst compact axial fans

    Voltage

    5–75 VDC, 11–440 VAC

    Airflow rate

    up to 1,220 m3/h

    Power consumption

    0.1–360 W

    Applications

    up to 1,500 Pa

    Flagship axial compact fans

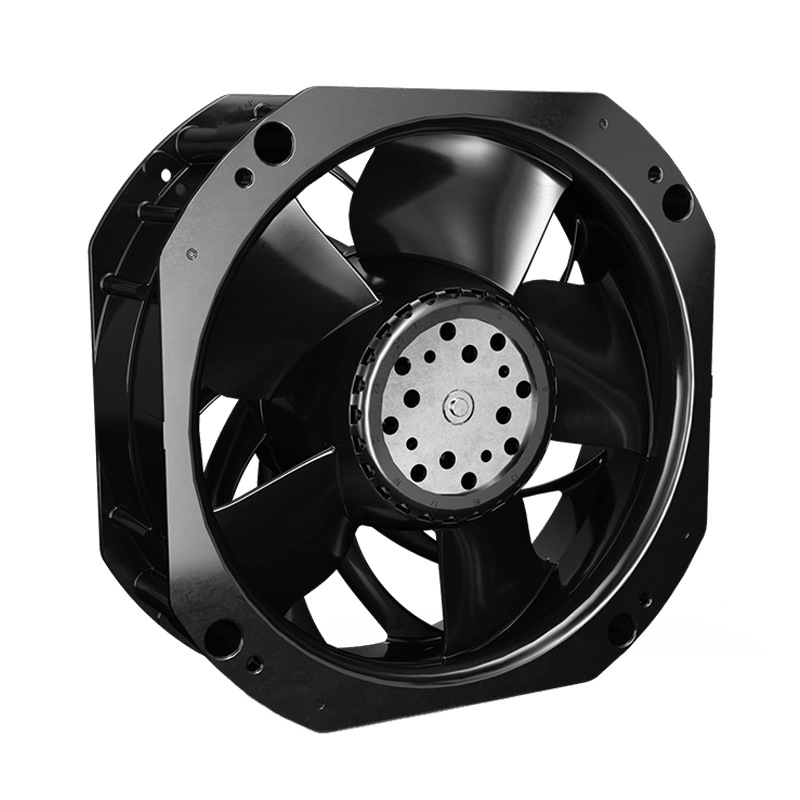

    AxiEco 200 (DC)

    Control airflow turbulence when cooling charging stations, energy storage systems, data centers, automation systems, and more. The AxiEco 200 is built for high-pressure applications and resistance to water & dust.

    AxiEco 200

    AxiForce (DC)

    The AxiForce is great for applications where sensitive electronic and electric components must be protected from harmful environmental factors. For example, industrial control cabinets for production lines or mobile network infrastructures.

    AxiForce

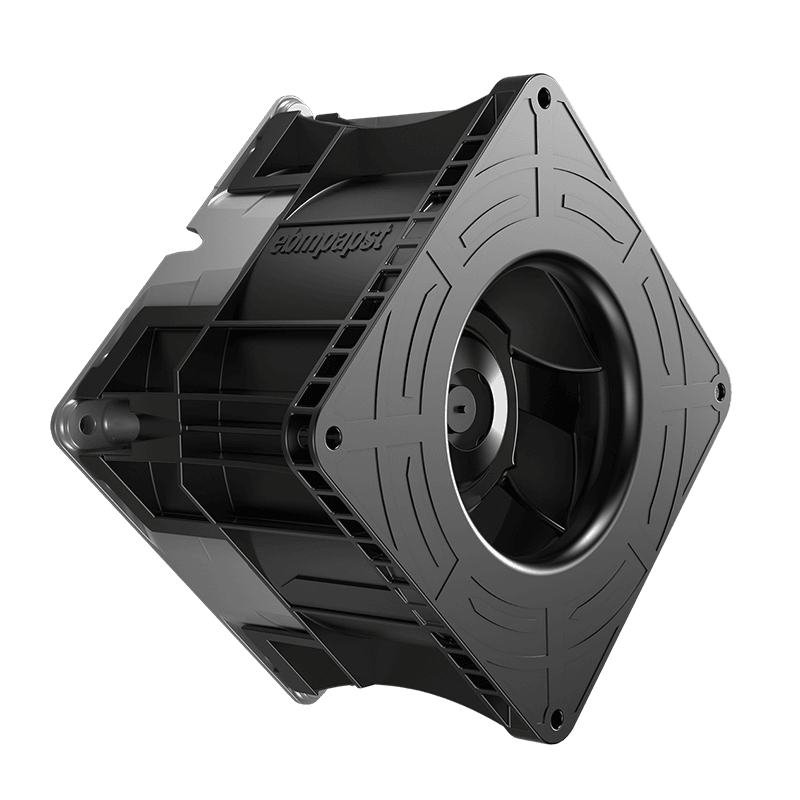

    DiaForce (DC)

    A perfect solution for IoT applications and future-proof server cooling. The DiaForce moves air both axially and radially, creating a high pressure increase. The cooling openings improve the motor's heat management, while the rotating cover plate reduces turbulence and the noise of the blades.

    DiaForce

    DC compact axial fans

    DC fans showcase

    Our DC product portfolio includes a wide range of sizes and performance classes to meet the specific requirements of your application. All of the fans feature efficient, brushless motor technology with electronically commutated drives and integrated reverse polarity protection.

    • Our DC fans stand out for their long service life and exceptional energy efficiency, which helps reduce thermal load and ensures reliable, long-term operation.
    • NEXAIRA enables smart speed control, optimized noise levels and performance monitoring via digitalization.

    All fans are supplied with IP20 protection as the standard. IP54, IP68, and other special protection types are available upon request.

    Download DC catalog
    Search with FanScout

    Need data center cooling for the AI age?

    explore in-row, RDHx and more solutions from ebm‑papst

    Learn more

    EC compact axial fans

    Axial EC compact fans, in particular our new AxiACi series, stand for flexibility, high efficiency and can be used across many applications. The wide voltage possible in EC fans reduces the logistics costs and warehousing, as the fan can be used with its specified values regardless of the line voltage.

    • Unlike conventional AC technology, the state-of-the-art drive concept of this fan series is not linked to a fixed power frequency. Thank to this, EC fans have a significantly higher airflow and pressure increase.
    • Without switching, the EC fan adapts to every power supply – from 90 to 264 VAC at line frequencies of 50 and 60 Hz. Voltage fluctuations in the power system are automatically compensated for.

    The extremely quiet and highly efficient GreenTech EC motor has a long service life and is suitable for both technologically demanding new projects, as well as a replacement for obsolete AC solutions. We offer protection up to IP65 and the fans are also suitable for use with natural refrigerants.

    Download EC catalog
    Search with FanScout
    EC fans showcase

    Not sure which solution you need? Use FanScout!

    a tool that helps you find the best fans for your application

    Learn more

    AC compact axial fans

    AC fans showcase

    The proven AC fans from ebm‑papst are used wherever DC voltage is not available. Aside from complete fan units, versions without external housing are also available, which are ideal when the air duct can be integrated into the ventilated device.

    • AC fans come in various sizes and configurations, including exhaust or intake over struts, with either plug connectors or exposed connection wires.
    • They are driven by shaded-pole or capacitor motors based on the well-known external rotor principle, a design that combines high performance with cost-effectiveness.

    All fan types come standard with IP20 protection. IP65 and other special protection classes are available upon request.

    Download AC catalog
    Search with FanScout
